Simple REST API Implementation in C++ with nghttp2, jsoncpp

1. Requirements

Installed required libraries.

brew install jsoncpp

brew install boost

libnghttp2_asio , which has the header files we need, has been deprecated so we can no longer do it by brew install nghttp2 and then building from there. The library has moved to https://github.com/nghttp2/nghttp2-asio.

Because of the above reason, we will separately install nghttp-asio using vcpkg.

Install vcpkg first.

brew install vcpkg

git clone https://github.com/microsoft/vcpkg "$HOME/vcpkg"

export VCPKG_ROOT="$HOME/vcpkg"

Install nghttp-asio using vcpkg.

vcpkg install nghttp2-asio

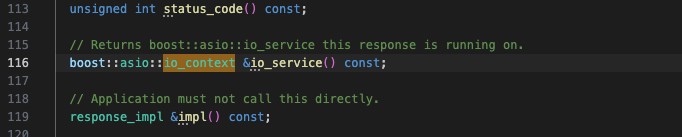

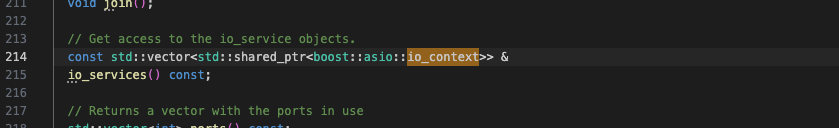

Since nghttp2-asio was developed with an older version of Boost, compiling it with a newer Boost version will lead to an error stating that there is no member named io_service in the boost::asio namespace. This is because, in the updated Boost, io_service has been replaced by io_context. I used a bruteforce solution and replaced all occurrences of io_service with io_context in the header file we need, asio_http2_server.h .

For my setup, the file was located at $HOME/dvcpkg/installed/arm64-osx/include/nghttp2/asio_http2_server.h; I replaced a total of 2 occurrences.

2. Implement REST API Server

Since this is a simple example for practice, I won’t be adding any authentication logic. However, for actual usage, authentication (e.g., JWT, OAuth) is required.

Initial Setup

First I include all necessary headers and declare namespace.

#include <iostream>
#include <map>
#include <nghttp2/asio_http2_server.h>
#include <json/json.h>

using namespace nghttp2::asio_http2;
using namespace nghttp2::asio_http2::server;

I also created a map userData to store the userID and userName.

std::map<int, std::string> userData = {
    {753951, "Lyn"},
    {574269, "Gojo"}
};

Then define getUserJson() function, which returns the user data in a JSON format. Basically it converts the userData map into a JSON array with jsoncpp.

Json::Value getUsersJson() {
    Json::Value users(Json::arrayValue);

    for (const auto &user : userData) {
        Json::Value userJson;
        userJson["id"] = user.first;
        userJson["name"] = user.second;
        users.append(userJson);
    }

    return users;
}

/*
will return:
[
    {
        "id": 753951,
        "name": "Lyn"
    },
    {
        "id": 574269,
        "name": "Gojo"
    }
]
*/

Setup the Server

In main(), I will insatiate 2 objects:

boost::system::error_code ec;
http2 server;

• ec is an object that stores the server’s error while running
• server is our HTTP/2 object

We will test by defining a basic endpoint and starting the server on localhost:3000.

server.handle("/", [](const request &req, const response &res) {
    res.write_head(200);
    res.end("This is Lyn's Example! Hello, World :>\n");
});

if (server.listen_and_serve(ec, "localhost", "3000")) {
    std::cerr << "error: " << ec.message() << std::endl;
}

Build and run the executable. I used a Makefile below.

CXX = g++
CXXFLAGS = -std=c++17 -Wall -Wextra -O2

INCLUDES = -I/opt/homebrew/include -I/$(VCPKG_ROOT)/installed/arm64-osx/include
LIBS = -L/opt/homebrew/lib -L/$(VCPKG_ROOT)/installed/arm64-osx/lib -lnghttp2 -lnghttp2_asio -lboost_system -ljsoncpp -lssl -lcrypto -lpthread

TARGET = server
SRCS = main.cpp
OBJS = $(SRCS:.cpp=.o)

all: $(TARGET) clean_obj

$(TARGET): $(OBJS)
    $(CXX) $(CXXFLAGS) $(OBJS) -o $@ $(LIBS) $(INCLUDES)

%.o: %.cpp
    $(CXX) $(CXXFLAGS) $(INCLUDES) -c $< -o $@

clean:
    rm -f $(OBJS) $(TARGET)

clean_obj:
    rm -f $(OBJS)

.PHONY: all clean

You can call the api with cURL command. Since nghttp2 uses HTTP/2, use the --http2-prior-knowledge option to make an HTTP/2 request.

curl --http2-prior-knowledge -X GET http://localhost:3000/

The output should be:

This is Lyn's Example! Hello, World :>

Define /api/users Endpoint

Now define an actual endpoint for the api. My example API will have an /api/users endpoint where caller can make GET, PUT, POST requests.

server.handle("/api/users", [](const request &req, const response &res) {
    ...
});

• server.handle is a call back function that process requests for the specified endpoint.
• [](const request &req, const response &res) is a lambda function that takes two arguments (res and req) which processes the incoming request and sends an appropriate response.

Request Method Logic

if (req.method() == "GET") {
    // GET logic
} else if (req.method() == "POST") {
    // POST logic
} else {
    // Not supported
}

• req.method() returns the type of the request (GET, POST, PUT, DELETE)

Handling GET Requests

When the client sends a GET request to the /api/users endpoint, the server will respond by retrieving and returning the list of users (userData) in JSON format.

if (req.method() == "GET") {
    Json::StreamWriterBuilder writer;
    std::string jsonString = Json::writeString(writer, getUsersJson()) + "\n";

    res.write_head(200);
    res.end(jsonString);
}

• The StreamWriterBuilder and Json::writeString are used to convert the JSON object into a string.
• res.write_head(200) Sends an HTTP 200 OK response.
• res.end(jsonString) Sends the JSON data to the client.

To test the endpoint, use the following cURL command:

curl --http2-prior-knowledge -X GET http://localhost:3000/users

Output should be:

[
    {
        "id": 753951,
        "name": "Lyn"
    },
    {
        "id": 574269,
        "name": "Gojo"
    }
]

Handling POST Requests

The POST request allows adding a new user by specifying their id and name.

req.on_data([&res](const uint8_t *data, std::size_t len) {
    std::string body(reinterpret_cast<const char *>(data), len);
    Json::CharReaderBuilder reader;
    Json::Value requestBody;
    std::string errors;
    std::istringstream iss(body);

    if (Json::parseFromStream(reader, iss, &requestBody, &errors)) {
        if (!(requestBody.isMember("name") && requestBody.isMember("id"))) {
            res.write_head(404);
            res.end("{\"error\": \"Key not found\"}\n");
        } else {
            int userID = requestBody["id"].asInt();
            std::string userName = requestBody["name"].asString();
            userData[userID] = userName;

            Json::Value responseJson;
            responseJson["message"] = "User added successfully";
            responseJson["id"] = userID;
            responseJson["name"] = userName;

            Json::StreamWriterBuilder writer;
            std::string jsonResponse = Json::writeString(writer, responseJson) + "\n";

            res.write_head(201);
            res.end(jsonResponse);
            }

    } else {
        res.write_head(400);
        res.end(R"({"error": "Invalid JSON"})");
    }
}

• The server reads the raw body of the POST request using the on_data callback. (passes &res as a capture).
• Then, the body is parsed using the Json::parseFromStream() function.

You can test will cURL as well

(successful)

curl --http2-prior-knowledge -X POST http://localhost:3000/users -d '{"id":123456, "name":"Satoru"}'

{
    "message": "User added successfully",
    "id": 123456,
    "name": "Satoru"
}

(invalid key)

curl --http2-prior-knowledge -X POST http://localhost:3000/users -d '{"ids":123456, "names":"Satoru"}'

{"error": "Key not found"}

Handling Invalid Requests

When an invalid type of request was sent, the server will send an error message.

else {
    res.write_head(405);
    res.end("{\"error\": \"Method not allowed\"}\n");
}

You can also test this with cURL:

curl --http2-prior-knowledge -X PUT http://localhost:3000/users

{"error": "Method not allowed"}

Define /api/users/{userID} Endpoint

The /api/users/{userID} endpoint allows the server to handle user-specific requests, where {userID} is a dynamic path parameter representing the ID of the user. Caller can make GET, PUT, and DELETE requests for this endpoint.

The code is very similar to above.

server.handle("/users/", [](const request &req, const response &res) {
    std::string path = req.uri().path;
    std::string userIDStr = path.substr(path.find_last_of('/') + 1);
    int userID = std::stoi(userIDStr);

    if (req.method() == "GET") {
        // curl --http2-prior-knowledge -X GET http://localhost:3000/users/753951
        // curl --http2-prior-knowledge -X GET http://localhost:3000/users/000000

        if (userData.find(userID) != userData.end()) {
            Json::Value userJson;
            userJson["id"] = userID;
            userJson["name"] = userData[userID];

            Json::StreamWriterBuilder writer;
            std::string jsonString = Json::writeString(writer, userJson) + "\n";

            res.write_head(200);
            res.end(jsonString);
        } else {
            res.write_head(404);
            res.end("{\"error\": \"User not found\"}\n");
        }

    } else if (req.method() == "PUT") {
        // curl --http2-prior-knowledge -X PUT http://localhost:3000/users/753951 -d '{"name":"Lyn Jeong"}'
        // curl --http2-prior-knowledge -X PUT http://localhost:3000/users/000000 -d '{"name":"Geto"}'
        // curl --http2-prior-knowledge -X PUT http://localhost:3000/users/753951 -d '{"names":"Lyn Jeong"}'

        req.on_data([&res, userID](const uint8_t *data, std::size_t len) {
            std::string body(reinterpret_cast<const char *>(data), len);
            Json::CharReaderBuilder reader;
            Json::Value requestBody;
            std::string errors;
            std::istringstream iss(body);

            if (Json::parseFromStream(reader, iss, &requestBody, &errors)) {
                if (!requestBody.isMember("name")) {
                    res.write_head(404);
                    res.end("{\"error\": \"Key not found\"}\n");
                } else {
                    if (userData.find(userID) != userData.end()) {
                        userData[userID] = requestBody["name"].asString();

                        Json::Value responseJson;
                        responseJson["message"] = "User updated successfully";
                        responseJson["id"] = userID;
                        responseJson["name"] = userData[userID];

                        Json::StreamWriterBuilder writer;
                        std::string jsonResponse = Json::writeString(writer, responseJson) + "\n";

                        res.write_head(200);
                        res.end(jsonResponse);
                    } else {
                        res.write_head(404);
                        res.end("{\"error\": \"User not found\"}\n");
                    }
                }
            } else {
                res.write_head(400);
                res.end(R"({"error": "Invalid JSON"})");
            }
        });

    } else if (req.method() == "DELETE") {
        // curl --http2-prior-knowledge -X DELETE http://localhost:3000/users/753951
        // curl --http2-prior-knowledge -X DELETE http://localhost:3000/users/000000

        if (userData.find(userID) != userData.end()) {
            std::string userName = userData[userID];

            if (userData.erase(userID) > 0) {
                res.write_head(200);
                res.end("{\"message\": \"User " + userName + " deleted successfully\"}\n");
            } else {
                res.write_head(404);
                res.end("{\"error\": \"Failed to delete " + userName + "\"}\n");
            }

        } else {
            res.write_head(404);
            res.end("{\"error\": \"User not found\"}\n");
        }
    } else {
        // curl --http2-prior-knowledge -X POST http://localhost:3000/users/753951 -d '{"id":789012, "name":"Geto"}'

        res.write_head(405);
        res.end("{\"error\": \"Method not allowed\"}\n");
    }
});

3. API Endpoint Summary

The API has two main endpoints for managing users: /api/users and /api/users/{userID}.

Endpoint	Method	Description	Example cURL Command
/api/users	GET	Retrieve all users as a JSON array.	curl --http2-prior-knowledge -X GET <http://localhost:3000/api/users
	POST	Add a new user with id and name.	curl --http2-prior-knowledge -X POST <http://localhost:3000/api/users> -d '{"id":123456, "name":"Satoru"}'
/api/users/{userID}	GET	Retrieve a specific user by userID.	curl --http2-prior-knowledge -X GET <http://localhost:3000/users/753951
	PUT	Update the user’s name by userID.	curl --http2-prior-knowledge -X PUT <http://localhost:3000/users/753951> -d '{"name":"Lyn Jeong"}'
	DELETE	Remove a specific user by userID.	curl --http2-prior-knowledge -X DELETE <http://localhost:3000/users/753951
Any unsupported method	Any	Return 405 Method Not Allowed error.	—
