5G Core - Building Open5GS¶

This guide will walk you through installing Open5Gs in Ubuntu environment. Please check the official document for other environments as you might need to build from source.

1. Getting MongoDB¶

Import the public key used by the package management system.

sudo apt update
sudo apt install gnupg
curl -fsSL https://pgp.mongodb.com/server-6.0.asc | sudo gpg -o /usr/share/keyrings/mongodb-server-6.0.gpg --dearmor

Create the list file /etc/apt/sources.list.d/mongodb-org-6.0.list for your version of Ubuntu.

On ubuntu 22.04 (Jammy):

echo "deb [ arch=amd64,arm64 signed-by=/usr/share/keyrings/mongodb-server-6.0.gpg] https://repo.mongodb.org/apt/ubuntu jammy/mongodb-org/6.0 multiverse" | sudo tee /etc/apt/sources.list.d/mongodb-org-6.0.list

2. Installing Open5GS¶

Install Open5GS using apt

sudo add-apt-repository ppa:open5gs/latest
sudo apt update
sudo apt install open5gs

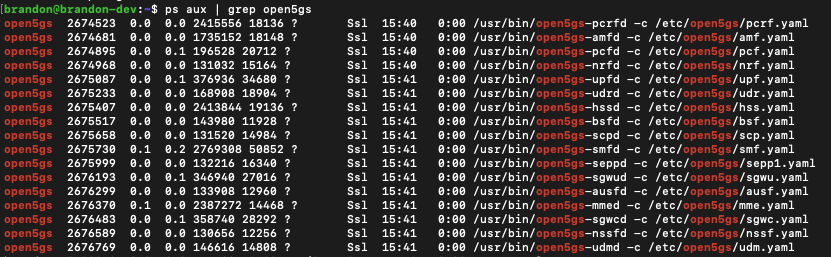

Verify that it’s running

ps aux | grep open5gs

3. Install the WebUI of Open5GS¶

The WebUI allows you to interactively edit subscriber data.

Install Node.js

 # Download and import the Nodesource GPG key
 sudo apt update
 sudo apt install -y ca-certificates curl gnupg
 sudo mkdir -p /etc/apt/keyrings
 curl -fsSL https://deb.nodesource.com/gpgkey/nodesource-repo.gpg.key | sudo gpg --dearmor -o /etc/apt/keyrings/nodesource.gpg

 # Create deb repository
 NODE_MAJOR=20
 echo "deb [signed-by=/etc/apt/keyrings/nodesource.gpg] https://deb.nodesource.com/node_$NODE_MAJOR.x nodistro main" | sudo tee /etc/apt/sources.list.d/nodesource.list

 # Run Update and Install
 sudo apt update
 sudo apt install nodejs -y

Install WebUI

curl -fsSL https://open5gs.org/open5gs/assets/webui/install | sudo -E bash -

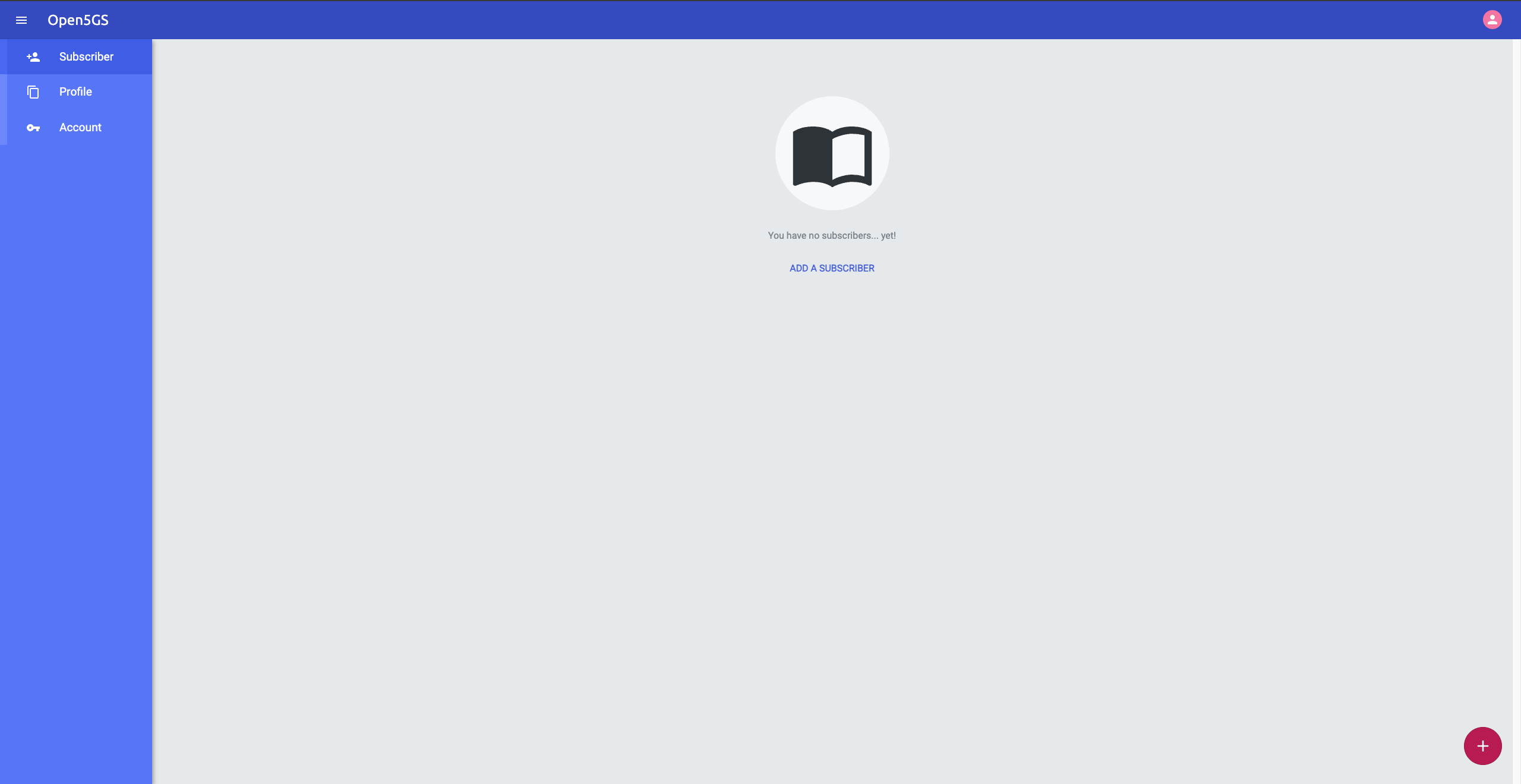

Now when you goto http://localhost:9999 you should be able the see the graphical UI like below.

Start WebUI

sudo systemctl start open5gs-webui

OPTIONALLY If you want to access the webUI from another machine, you can modify the index.js file to listen to 0.0.0.0.

Locate where the index.js is at.
```
find / -name "open5gs" -type d 2>/dev/null
```
Check the directories listed and find the server directory which is where the js file is in. Typically located in /usr/lib/node_modules/open5gs/server/index.js

Modify the listen call to bind to 0.0.0.0'

sudo nano /usr/lib/node_modules/open5gs/server/index.js

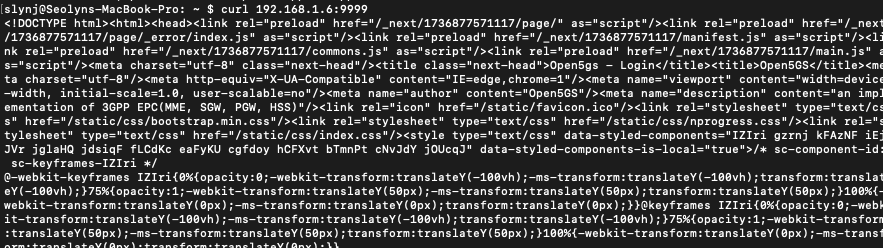

Optionally test with curl
```
curl 192.168.1.6:9999
```
Connect to it on the machine. For me it was http:://192.168.1.6:9999

4. Configuring Open5GS¶

Now that you’ve installed Open5GS, you need to modify the configuration and set up your network for proper functionality. Here’s a brief overview:

Modify configuration files
- Update the *.yaml files for each component in the /etc/open5gs/ directory
- Configure IP addresses, PLMN (Public Land Mobile Network) IDs, and other settings to match your deployment. Note that Open5GS comes ready to run on one machine, only modify IP addresses if your UE & gNB is on a different machine.
- You will need to modify the PLMN in your NRF and AMF config, and in case of AMF, further modify the TAC information.
- If you are aiming to connect an external gNB to your core, you will also need to change the NGAP bind address of the AMF and the GTPU bind address of the UPF. If you are running an gNB stack locally, you will not need to make these changes.
Add Subscriber Data
- Enter your UE details like IMSI, keys, and APNs using the WebUI (or CLI)

nrf.yaml¶

Modify /etc/open5gs/nrf.yaml to set the PLMN ID.

nrf:
  serving:  # 5G roaming requires PLMN in NRF
    - plmn_id:
        mcc: 001
        mnc: 01

amf.yaml¶

Modify /etc/open5gs/amf.yaml to set the NGAP IP address, PLMN ID, TAC and NSSAI.

ngap:
    server:
      - address: 127.0.0.5
  metrics:
    server:
      - address: 127.0.0.5
        port: 9090
  guami:
    - plmn_id:
        mcc: 001
        mnc: 01
      amf_id:
        region: 2
        set: 1
  tai:
    - plmn_id:
        mcc: 001
        mnc: 01
      tac: 1
  plmn_support:
    - plmn_id:
        mcc: 001
        mnc: 01
      s_nssai:
        - sst: 1

upf.yaml¶

Modify /etc/open5gs/upf.yaml to set the GTP-U address.

     gtpu:
       server:
        - address: 127.0.0.7
     session:
       - subnet: 10.45.0.1/16
       - subnet: 2001:db8:cafe::1/48

After configuring, restart the daemons.

sudo systemctl restart open5gs-nrfd
sudo systemctl restart open5gs-amfd
sudo systemctl restart open5gs-upfd

5. Registering Subscriber Information¶

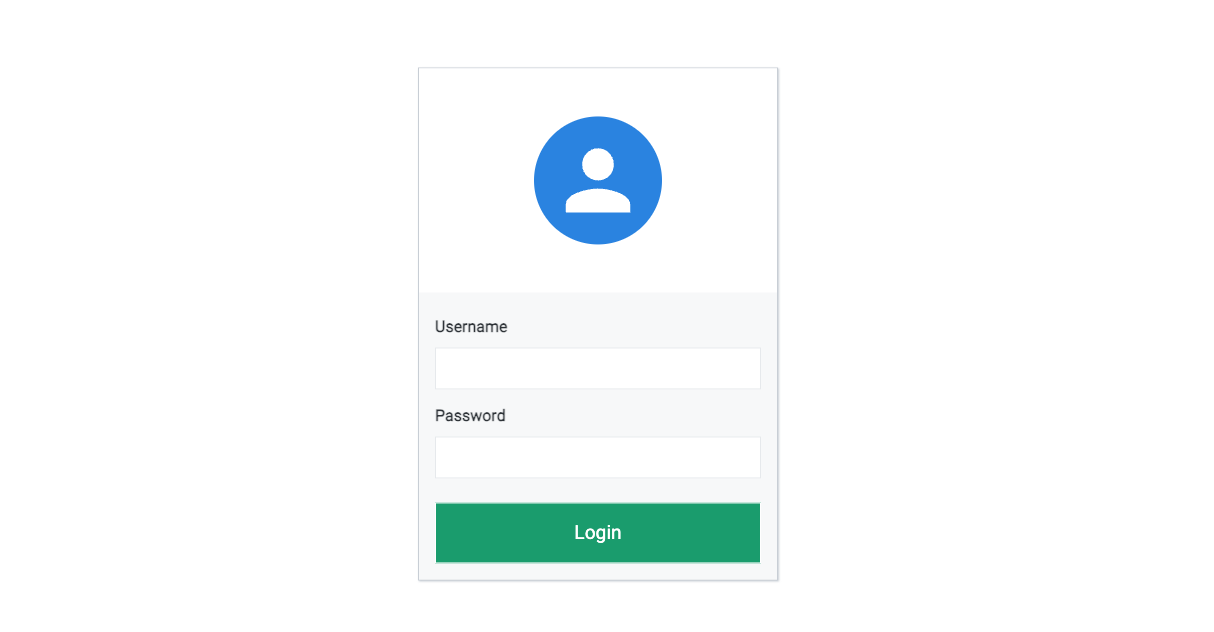

Connect and login with admin account

ID: admin
PWD: 1423

Add subscriber information

Go to subscriber Menu
Click + button to add a new subscriber

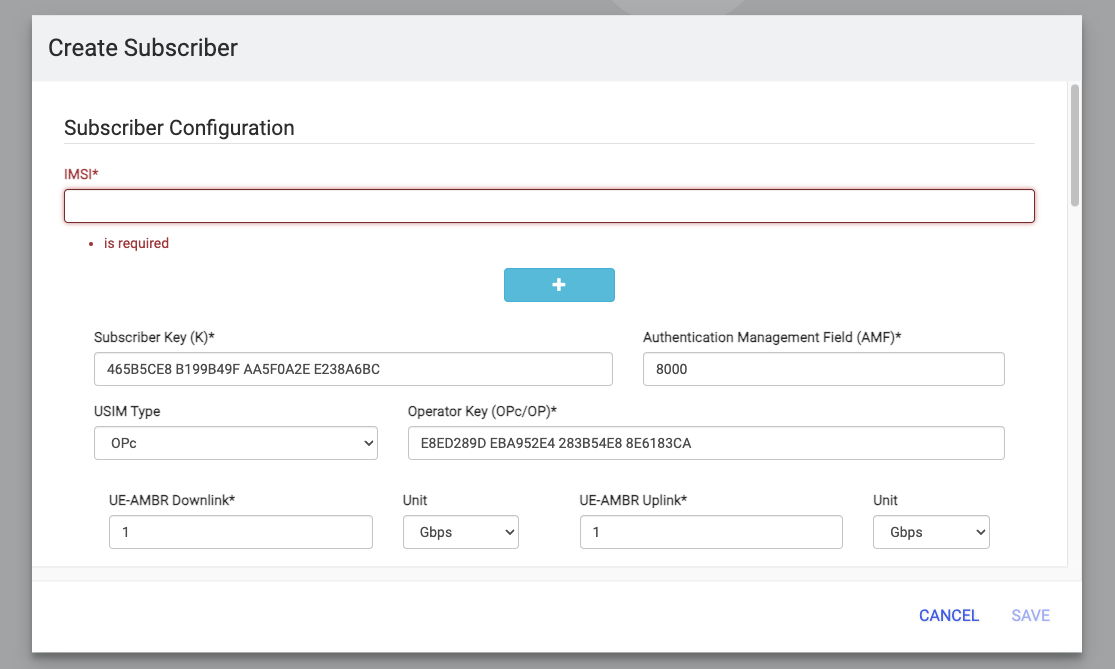

Fill the IMSI, security context(K, OPc, AMF), and APN of the subscriber
Click SAVE

6. Uninstalling Open5GS and WebUI¶

Remove the Open5GS packages.

sudo apt purge open5gs
sudo apt autoremove

Remove the logs as well.

sudo rm -Rf /var/log/open5gs

Remove the WebUI.

curl -fsSL https://open5gs.org/open5gs/assets/webui/uninstall | sudo -E bash -

RESROUCES: Open5Gs Official Documentation
